1. Description

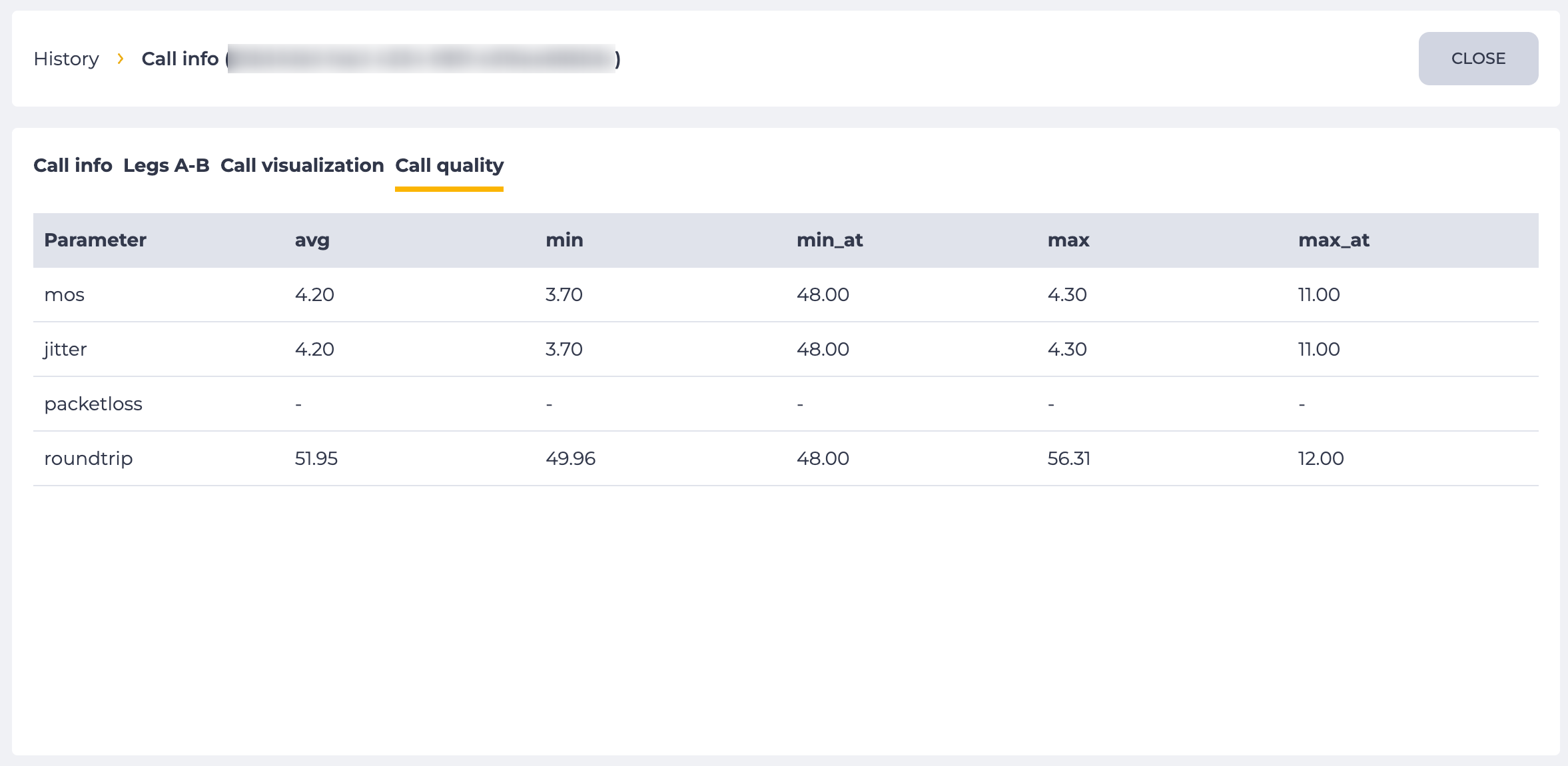

The Call quality tab displays the network quality parameters recorded during the call in a table (Fig. 1).
The table consists of the following columns:
-
Parameter — the name of the network quality parameter:
-
mos — the overall call quality score (the higher the value, the better the quality);
-
jitter — the variation in delay between data packets (the lower the value, the more stable the connection);
-
packetloss — the percentage of data packets lost during transmission (the lower the value, the better);
-
roundtrip — the time it takes for a data packet to reach the recipient and return (the lower the value, the lower the network latency);
-
-
avg — the average value of the parameter over the duration of the call;
-
min — the minimum recorded value of the parameter;
-
min_at — the time when the minimum value was recorded;
-
max — the maximum recorded value of the parameter;
-
max_at — the time when the maximum value was recorded.
